01 / 02 | EARTHING AND LIGHTNING PROTECTION

A Path To Earth That Holds.

Copper bonded earth rods, earthing electrodes, exothermic welding systems and lightning protection. Complete systems, from the rod in the ground to the terminal on the roof.

← Selected work

01 / 02 | EARTHING AND LIGHTNING PROTECTION

A Path To Earth That Holds.

Copper bonded earth rods, earthing electrodes, exothermic welding systems and lightning protection. Complete systems, from the rod in the ground to the terminal on the roof.

Featured

Copper Bonded Earth Rods

A high purity copper layer molecularly bonded to a low carbon steel core, giving the conductivity of copper with the driving strength of steel. Corrosion resistant and dimensionally stable in the toughest ground, and specified for power, telecom, railway and industrial installations.

High conductivity copper surface · Corrosion resistant, long service life · Drives straight and deep on a steel core · Couplable for deep driven runs

Project gallery photo — site works in progress

Attribute

Copper Coating

Steel Core

Diameter

Length

Thread

Surface finish

Standards

Specification

250 microns

Low carbon, cold drawn in house

10 / 12 / 13 / 15 / 16 / 17 / 19 / 20 / 22 / 25 / 30 / 40 / 45 / 50 mm

Any length

Rolled, couplable

Bright copper

UL 467 / IEC 62561-2 / IS 3043

Attribute

Copper Coating

Steel Core

Diameter

Length

Thread

Surface finish

Standards

Specification

250 microns

Low carbon, cold drawn in house

10 / 12 / 13 / 15 / 16 / 17 / 19 / 20 / 22 / 25 / 30 / 40 / 45 / 50 mm

Any length

Rolled, couplable

Bright copper

UL 467 / IEC 62561-2 / IS 3043

Rod Variants

Pure Copper Earth Rods

Solid 99.9 percent electrolytic copper, for aggressive and saline soils where a bonded coating will not survive the service life.

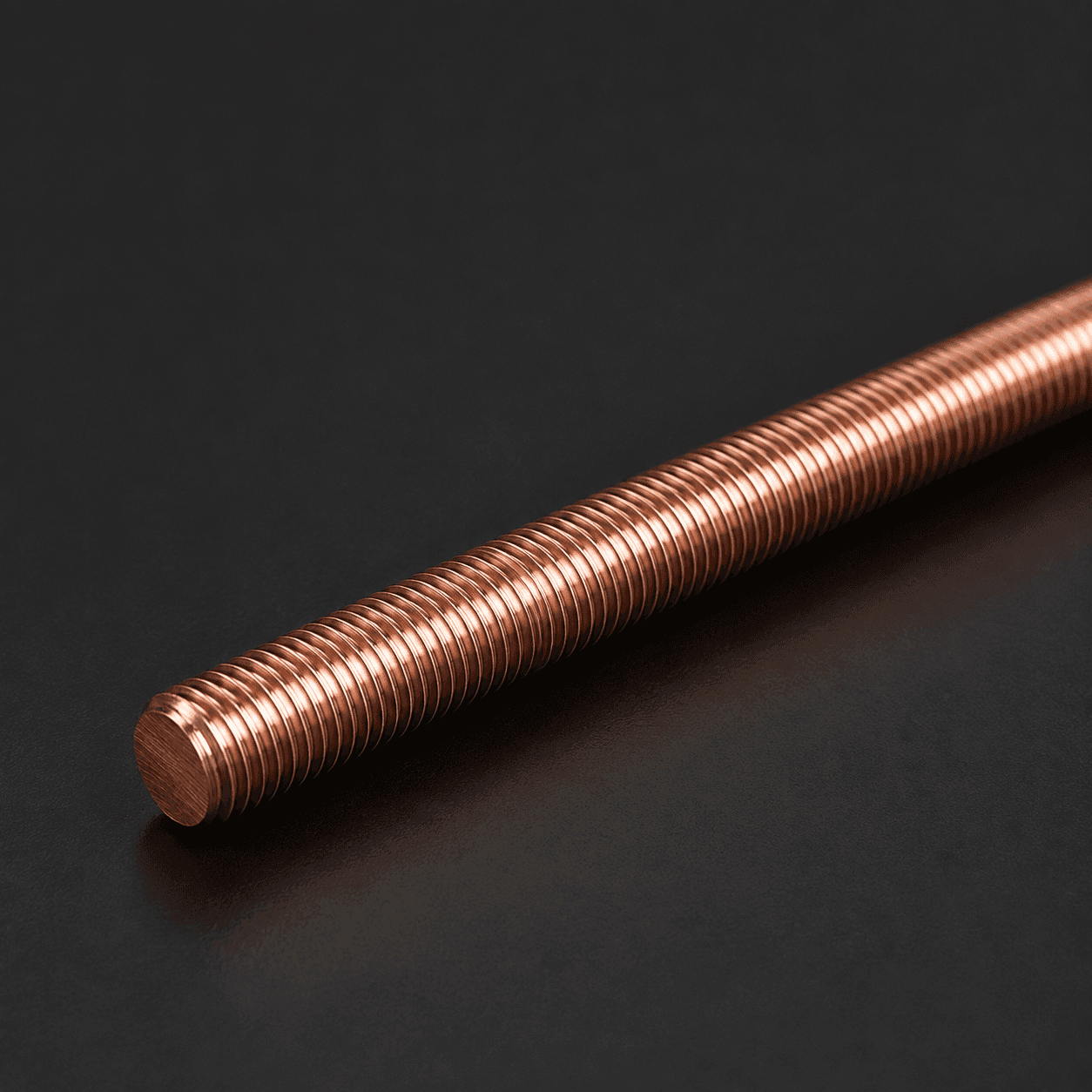

Copper Bonded Threaded Rod

Fully threaded and couplable along its length. Roll threaded rather than cut, so the copper stays intact at the thread and the joint does not become the weak point.

T-Terminal Earth Rod

An integrated terminal at the head of the rod for direct conductor termination, removing the need for a separate clamp at the connection

4G Copper Threaded Rod

Fully threaded and couplable along its length. Roll threaded rather than cut, so the copper stays intact at the thread and the joint does not become the weak point.

GI Earth Rods

Hot dip galvanised steel rod. Cost effective general earthing where soil conditions do not demand a bonded or solid copper path.

Pure Copper Earth Rods

Solid 99.9 percent electrolytic copper, for aggressive and saline soils where a bonded coating will not survive the service life.

Copper Bonded Threaded Rod

Fully threaded and couplable along its length. Roll threaded rather than cut, so the copper stays intact at the thread and the joint does not become the weak point.

T-Terminal Earth Rod

An integrated terminal at the head of the rod for direct conductor termination, removing the need for a separate clamp at the connection

4G Copper Threaded Rod

Fully threaded and couplable along its length. Roll threaded rather than cut, so the copper stays intact at the thread and the joint does not become the weak point.

GI Earth Rods

Hot dip galvanised steel rod. Cost effective general earthing where soil conditions do not demand a bonded or solid copper path.

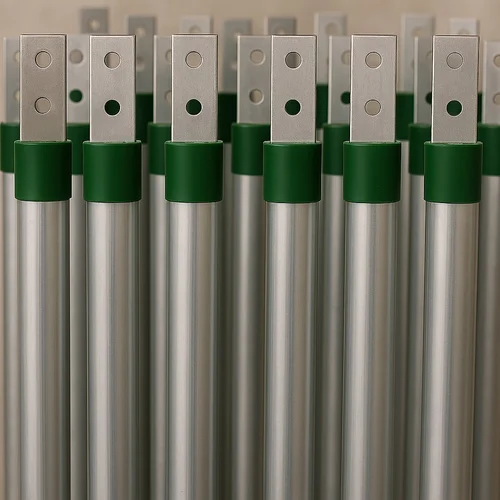

Earthing Electrodes

Pipe based electrodes. The inner pipe carries the fault current. The outer pipe and back fill protect it and hold the earth reading. An electrode is a pipe. A rod is a solid bar.

Copper Bonded Electrode

Copper bonded steel inner pipe. High conductivity and resistant to corrosion in aggressive soils.

Pure Copper Electrode

Solid copper path for the highest conductivity, for saline and high salt ground.

GI Earthing Electrode

Hot dip galvanised steel rod. Cost effective general earthing where soil conditions do not demand a bonded or solid copper path.

Copper Bonded Electrode

Copper bonded steel inner pipe. High conductivity and resistant to corrosion in aggressive soils.

Pure Copper Electrode

Solid copper path for the highest conductivity, for saline and high salt ground.

GI Earthing Electrode

Hot dip galvanised steel rod. Cost effective general earthing where soil conditions do not demand a bonded or solid copper path.

Attribute

Length

Outer Diameter

Plating

Back fill

Specification

2 m / 3 m

50 mm / 76 mm

25 / 100 / 250 microns, selectable

Compatible with our earth enhancement compound

Attribute

Length

Outer Diameter

Plating

Back fill

Specification

2 m / 3 m

50 mm / 76 mm

25 / 100 / 250 microns, selectable

Compatible with our earth enhancement compound

Lightning Protection

Capture the strike at the highest point, conduct it safely down, dissipate the energy into the earth.

01 Air terminal

01 Air Terminal

Intercepts the strike before it reaches the structure.

02 Down Conductors

Carry the strike current to the earthing system along the shortest path.

03 Energy Dissipation

The earthing system spreads and dissipates the energy safely into the ground.

ESE Lightning Arrestor

Copper bonded steel inner pipe. High conductivity and resistant to corrosion in aggressive soils.

Conventional Air Terminal

Solid copper path for the highest conductivity, for saline and high salt ground.

ESE Lightning Arrestor

Copper bonded steel inner pipe. High conductivity and resistant to corrosion in aggressive soils.

Conventional Air Terminal

Solid copper path for the highest conductivity, for saline and high salt ground.

Send Your Earthing Spec
