NEW FOR 2026 | CONDUCTORS, STRIPS AND ACCESSORIES
The Parts That Finish The Job.
Conductors and strips for the runs between, compound for the ground that will not cooperate, and every clamp, coupler and lug an installation is not complete without.
NEW FOR 2026 | CONDUCTORS, STRIPS AND ACCESSORIES
The Parts That Finish The Job.
Conductors and strips for the runs between, compound for the ground that will not cooperate, and every clamp, coupler and lug an installation is not complete without.
Featured
Featured

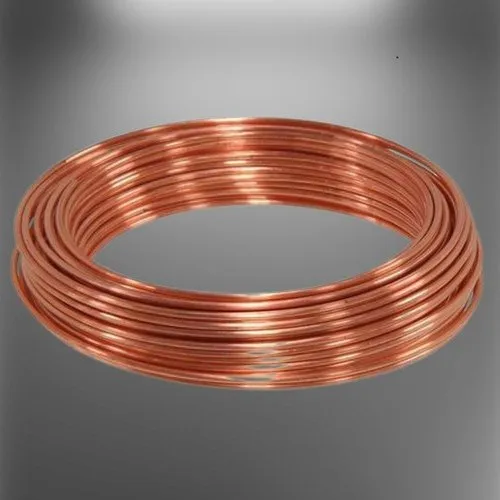

Copper Bonded Conductor
Round conductors for grid and bonding runs, in copper bonded, pure copper and aluminium. Supplied single or multi strand to suit the route and the termination.
Attribute
Size
Conductivity
Strand
Standard
Specification
8 mm / 10 mm
30 / 40 percent, bonded
Single or multi
ASTM B227
Attribute
Size
Conductivity
Strand
Standard
Specification
8 mm / 10 mm
30 / 40 percent, bonded
Single or multi
ASTM B227
Strips & Compounds
Strips & Compounds

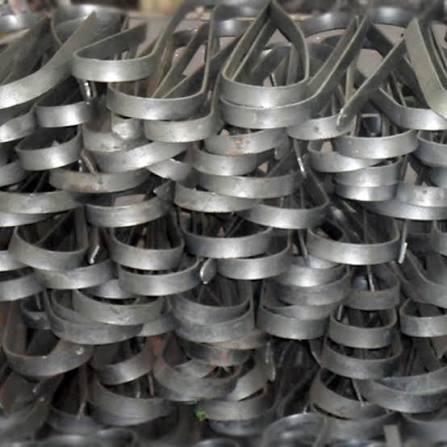

Earthing
Strip
Flat strip for grid, bonding and equipotential runs, in GI, copper bonded and copper. Sizes from 25 x 3 mm to 50 x 6 mm.
Flat strip for grid, bonding and equipotential runs, in GI, copper bonded and copper. Sizes from 25 x 3 mm to 50 x 6 mm.

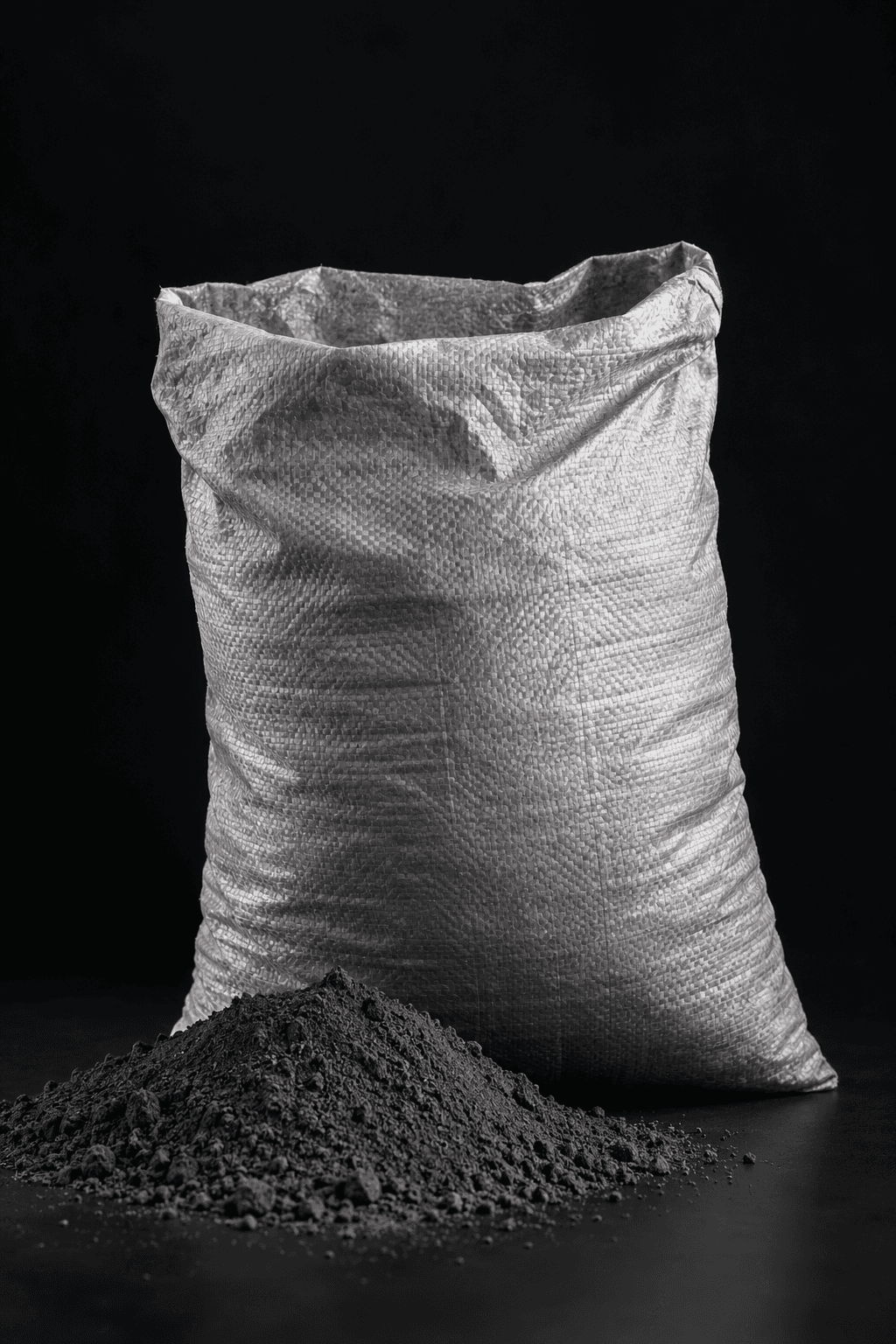

Earth Enhancement Compound
Conductive back fill that lowers soil resistivity and holds moisture through the dry season, so the reading taken at commissioning is the reading found at the next test. Non corrosive and maintenance free. 95 percent carbon, 25 kg pack, to IEC 62561-7.
Earthing
Strip
Flat strip for grid, bonding and equipotential runs, in GI, copper bonded and copper. Sizes from 25 x 3 mm to 50 x 6 mm.
Earth Enhancement Compound
Conductive back fill that lowers soil resistivity and holds moisture through the dry season, so the reading taken at commissioning is the reading found at the next test. Non corrosive and maintenance free. 95 percent carbon, 25 kg pack, to IEC 62561-7.
Jointing Systems
Jointing Systems
Exothermic Welding System
Permanent molecular joints made through an exothermic reaction. Moulds, weld metal and ignition for rod to cable, cable to cable and tape joints. The joint does not loosen and does not corrode at the junction.
Permanent molecular joints made through an exothermic reaction. Moulds, weld metal and ignition for rod to cable, cable to cable and tape joints. The joint does not loosen and does not corrode at the junction.
Earthing Pits & Covers
Solid copper pathPolymer and HDPE covers, FRP covers and concrete pit covers, with earth pit chamber and earth bar, giving protected access to the connection for periodic testing. for the highest conductivity, for saline and high salt ground.
Exothermic Welding System
Permanent molecular joints made through an exothermic reaction. Moulds, weld metal and ignition for rod to cable, cable to cable and tape joints. The joint does not loosen and does not corrode at the junction.
Earthing Pits & Covers
Solid copper pathPolymer and HDPE covers, FRP covers and concrete pit covers, with earth pit chamber and earth bar, giving protected access to the connection for periodic testing. for the highest conductivity, for saline and high salt ground.
Accessories
Accessories
Every rod, electrode and conductor lands with the fittings to install it. Couplers to drive deeper, clamps to terminate, bonds to connect.
Jointing & Driving
Jointing & Driving
Jointing & Driving

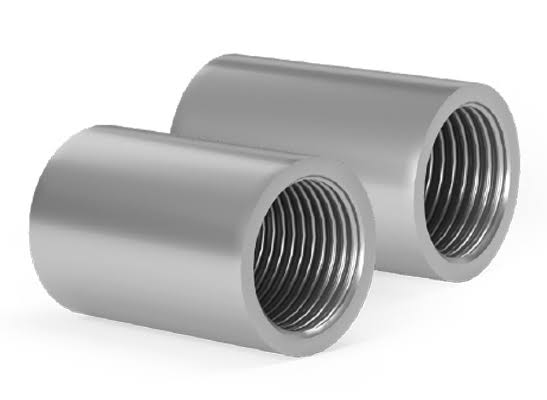

Coupler
Joins two rods end to end for deeper drives, threads fully enclosed to protect the copper.
Driving Stud
Takes the hammer blow so the rod thread stays clean while driving.
Takes the hammer blow so the rod thread stays clean while driving.
Driving Head
Caps the rod and spreads the driving force to prevent mushrooming.
Coupling Dowel
Aligns and locks coupled rods for a continuous conductive path.
Coupler
Joins two rods end to end for deeper drives, threads fully enclosed to protect the copper.
Driving Stud
Takes the hammer blow so the rod thread stays clean while driving.
Driving Head
Caps the rod and spreads the driving force to prevent mushrooming.
Coupling Dowel
Aligns and locks coupled rods for a continuous conductive path.
Clamps & Connectors
Clamps & Connectors
Clamps & Connectors
Rod to Tape Clamp
Terminates a flat earth tape onto the rod.
Terminates a flat earth tape onto the rod.

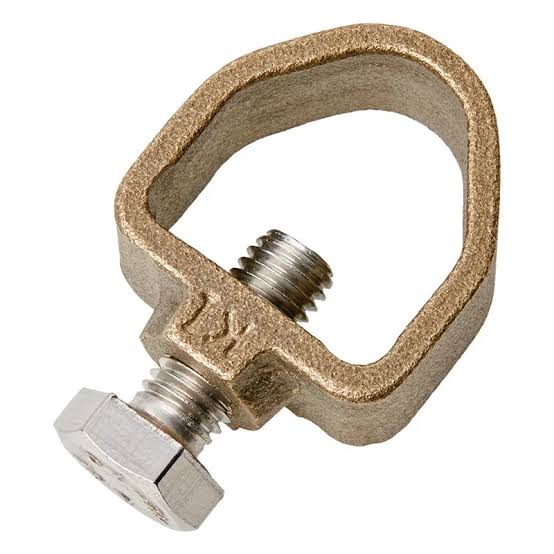

Rod to Cable Clamp
Terminates a round conductor or cable onto the rod.
Cable Lug
Crimped termination for cable ends at bars and plates
.
Crimped termination for cable ends at bars and plates
Bimetallic Connector
Joins copper to aluminium without galvanic corrosion at the junction.
Rod to Tape Clamp
Terminates a flat earth tape onto the rod.
Rod to Cable Clamp
Terminates a round conductor or cable onto the rod.
Cable Lug
Crimped termination for cable ends at bars and plates
Bimetallic Connector
Joins copper to aluminium without galvanic corrosion at the junction.
Termination & Bonding
Termination & Bonding
Termination & Bonding
Earth Bar
A single point to gather and disconnect multiple earth runs for testing.
Bonds
Connect pipes, structures and rails into the earthing system.
Earth Bar
A single point to gather and disconnect multiple earth runs for testing.
Bonds
Connect pipes, structures and rails into the earthing system.
